In the composites industry, where strength, weight, and performance intersect, the hand lay-up process continues to hold its ground as one of the most trusted and widely used methods. While modern techniques like resin transfer molding and automated fiber placement have advanced composite technology, the hand lay-up process remains a cornerstone for applications that require flexibility, cost-effectiveness, and customisation.
At Mobility Solutions Limited (MSL), we understand that not all solutions need automation to be efficient. Sometimes, the precision of human hands delivers the best performance.
What is the Hand Lay-up Process?

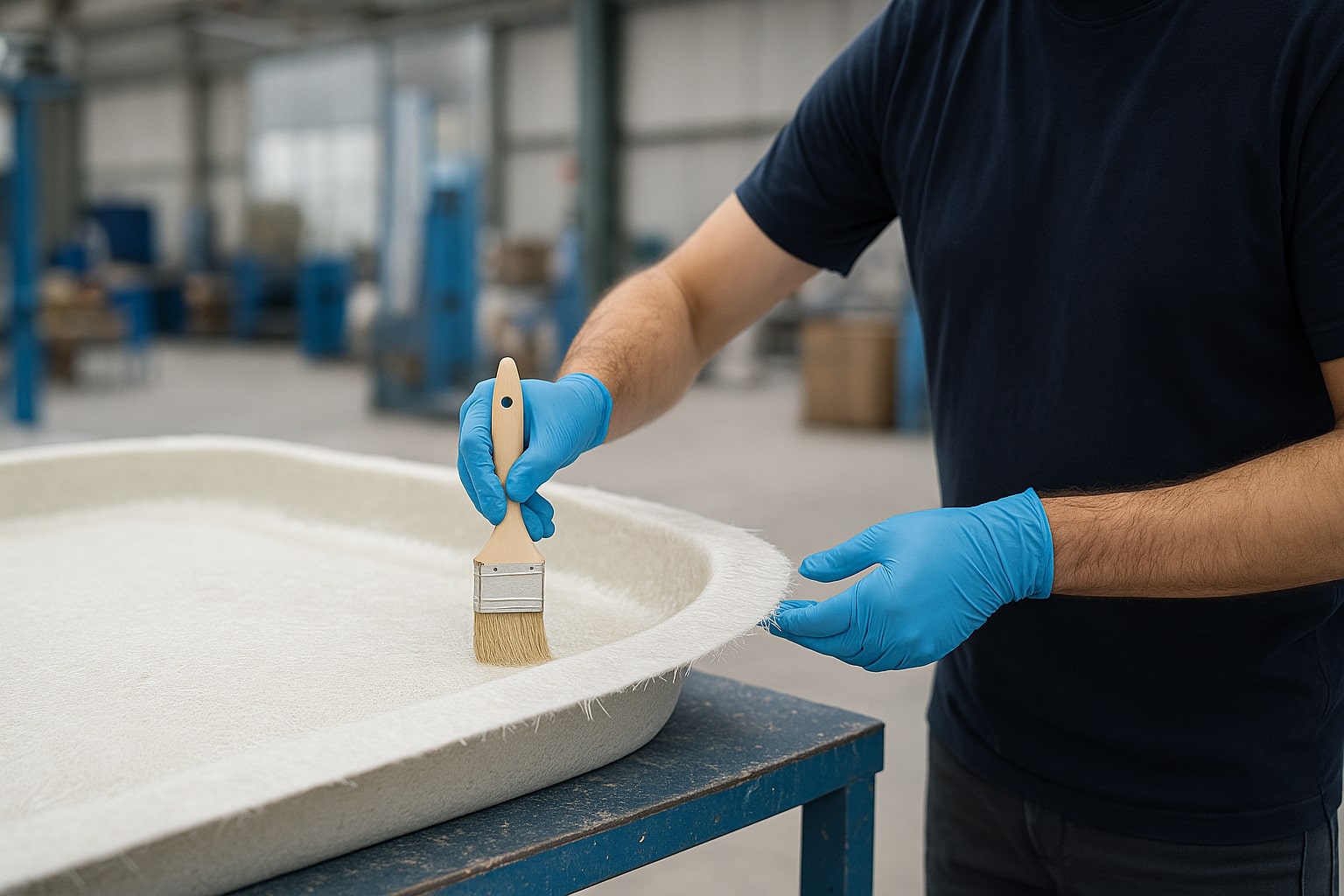

The hand lay-up method is the simplest and oldest technique in the composite industry. It involves manually placing layers of fiberglass, carbon fiber, or other reinforcements in a mold and then applying resin with a brush or roller. The resin-soaked reinforcement layers are then compacted to remove air bubbles and ensure even distribution.
Once the lay-up is complete, the composite part is cured, either at room temperature or with external heat, to achieve the desired structural properties.
Key Advantages of the Hand Lay-up Process
1. Cost-Effective Setup: One of the most significant advantages of the hand lay-up process is its low initial investment. Unlike automated systems, hand lay-up doesn’t require expensive tooling. This makes it ideal for small to medium batch production or prototyping.
2. Design Flexibility: Hand lay-up allows for a high degree of design freedom, enabling manufacturers to produce complex shapes, curves, and contours without the need for intricate molds or programming. This is especially beneficial for custom parts or designs that evolve with time.
3. Ideal for Large Parts: The process is especially suitable for large structural components—such as panels, enclosures, wind turbine blades, or vehicle parts—where automation may be challenging due to size limitations. It enables the manufacturing of large, lightweight parts without the overhead of automation.
4. Short Lead Time: Since there is minimal tooling and setup, manufacturers can go from concept to production quickly. This agility is beneficial for time-sensitive projects or rapid iterations during the product development phase.
5. High Customisation: The manual nature of hand lay-up makes it easy to tweak or adjust the part mid-production. Whether it’s changing the fiber orientation, resin type, or thickness, engineers can adapt on the fly—making the process ideal for one-off parts or specialized designs.
6. Suitable for Low Volume Production: For projects where only a few units are required, hand lay-up offers the most economical and scalable approach. It avoids the high cost of mold amortization over small quantities, making it an efficient choice for pilot runs or R&D purposes.
7. Control Over Fiber Placement: The technician has complete control over the fiber orientation, stacking sequence, and placement, which can directly influence the mechanical performance of the final product. This level of control is crucial in industries like aerospace, defense, and automobiles.
8. Ease of Repair and Rework: In case of defects, damages, or modifications, hand lay-up parts are easier to repair compared to automated composites. The technician can patch or reinforce areas with minimal material waste or downtime.
Applications Where Hand Lay-up Excels
- Automotive components (panels, dashboards, bumpers)
- Aerospace interior parts
- Railway interiors
- Wind turbine blades
- Boat hulls and decks
- Industrial covers and housings
- Custom enclosures and panels for mobility and defense sectors
Mobility Solutions Limited: Composites with Craftsmanship
At Mobility Solutions Limited (MSL), we combine engineering expertise with hands-on skill to manufacture high-performance composite parts using the hand lay-up technique. Whether it's for low-volume production, customized applications, or large composite structures, our team ensures consistency, quality, and precision.
Our process follows strict quality control protocols, and every layer laid by hand is backed by deep material knowledge, experience, and commitment to excellence.
We cater to industries that demand lightweight durability, fire resistance, chemical resistance, and custom design capabilities, and the hand lay-up process often proves to be the most agile and practical approach to meet those demands.
Conclusion
While automation is revolutionizing manufacturing, the hand lay-up process continues to be irreplaceable in areas where cost, customization, and flexibility are paramount. Its simplicity allows for great versatility, especially in prototyping, custom builds, and niche applications.
For industries looking to balance precision with efficiency, hand lay-up offers a perfect intersection of craft and capability. At MSL, we believe that sometimes, the human touch is the strongest layer of all.
